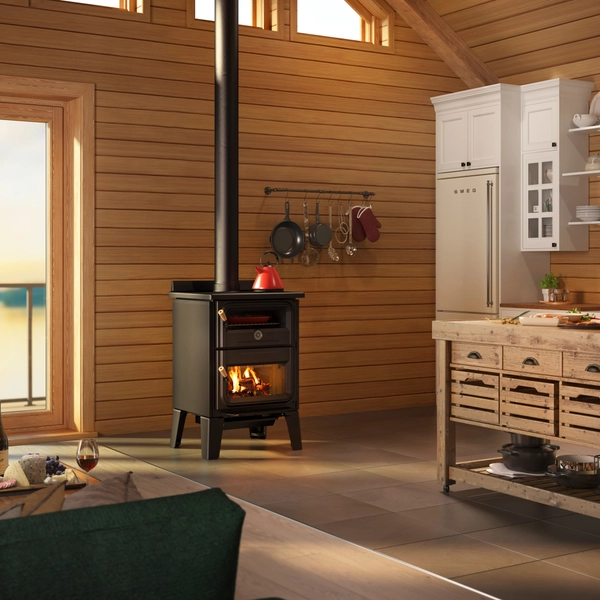

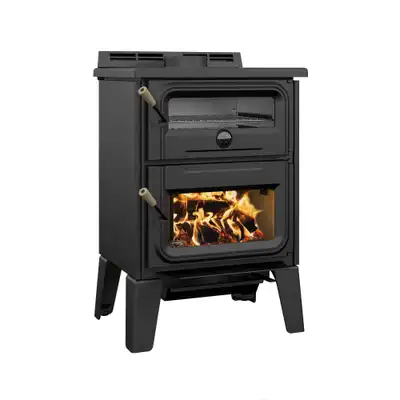

The Bistro wood-burning cookstove is contemporary, compact and versatile.

Full description
27"L X 26 3/8"P X 41 7/8"H
20"
1.26 ft³
Full specifications
Alain
ALAIN'S ADVICE
Description

The Bistro wood-burning cookstove is contemporary, compact and versatile. The perfect hybrid between a stove and a cookstove, it is an ideal additional heat source for spaces up to 2,100 ft². Its compact size offers reduced clearances to combustible materials to facilitate installation in your space.

Specifically designed to be pleasant to use, the Bistro is equipped with an air damper that allows you to regulate combustion and adjust cooking temperature. The stainless steel oven is located above the firebox to obtain an even internal temperature and simplify the handling of dishes. The side-opening door frees up space in front of the appliance and facilitates access to the interior of the oven.

Included: cleaning brush, stainless cooking grid, built-in thermometer, adjustable cast iron legs, ceramic glass, broad spectrum air damper, ash drawer and ash lip, splash guard

▪Robust cast iron cooking surface that sits at 39"
▪Large stainless steel oven (17 7/8" W x 15 3/4" D x 7 7/8" H)
▪Stainless steel cooking grid (2 positions)
▪Up to 8 hours burn time with a single load of wood
▪20" logs
▪2.4 ft³ combustion chamber
▪EPA certified
▪Proudly made in Canada
▪Limited lifetime warranty
▪Certified for mobile home installation
▪ This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
27"
Overall dimension (Height)
41 7/8"
Overall dimension (Depth)
26 3/8"
Oven dimension (Width)
17 7/8"
Oven dimension (Height)
7 7/8"
Oven dimension (Depth)
15 1/2"
Volume of the oven
1.26 ft³
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Firebox size (Width)
21"
Firebox size (Depth)
17 1/4"
Firebox size (Height)
11 7/8"
Log positioning
Loading over width
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 approved
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
7 1/8"
Distance-center of the flue outlet to side unit
13 1/2"
Recommended chimney diameter
6"
Type of chimney
ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Double, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16 1/2" x 7 1/2"
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
590 lb (268 kg)

Appliance performance

Fuel type
Dry cordwood
Recommended heating area(9)
500 – 2,100 ft²
Overall firebox volume
2.261 ft³
EPA loading volume
1.94 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22 kW)
Minimum overall heat output rate(4)(5)
14,300 BTU/h (4.19 kW)
Maximum overall heat output rate(4)(5)
47,300 BTU/h (13.86 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
76 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
81 %
Optimum efficiency(1)(2)
83 %
Optimum heat transfer efficiency(8)
80 %
Average particulate emission rate(3)
2.0 g/h
Average CO(10)
62 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall15"15"15"15"Clearance - Side wall15"15"15"15"Clearance - Corner7 1/2"7 1/2"7 1/2"7 1/2"Clearance - Front of the unit48"48"48"48"Clearance - Base of the unit to ceiling**72"72"72"72"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

Similar Products

Compare the features of this appliance with similar products
Current product
Drolet DB04815

BISTRO

DIMENSION
W : 27"
D : 26 3/8"
H : 41 7/8"
Maximum log length
20"
Oven dimension
W :17 7/8"
D :15 1/2"
H :7 7/8"
Drolet DB04800

OUTBACK CHEF

DIMENSION
W : 40"
D : 25 7/8"
H : 33 5/8"
Maximum log length
16"
Oven dimension
W :11 3/8"
D :17 3/4"
H :11 3/4"
Drolet DB04810

ATLAS

DIMENSION
W : 27"
D : 18"
H : 49 3/8"
Maximum log length
15" to 18"
Oven dimension
W :21 1/2"
D :13"
H :8 3/4"
Drolet DB04820

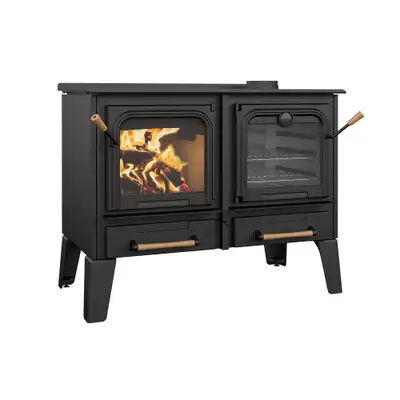

CHIC-CHOC
