Englander
0
Englander
EnglanderSKU: ESW0031

GRIZZLY KIT

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors.

Full description
17"L X 28"P X 25 3/4"H
22"
96 lb (44 kg) 75 lb (34 kg)
Full specifications
Alain
ALAIN'S ADVICE
Description

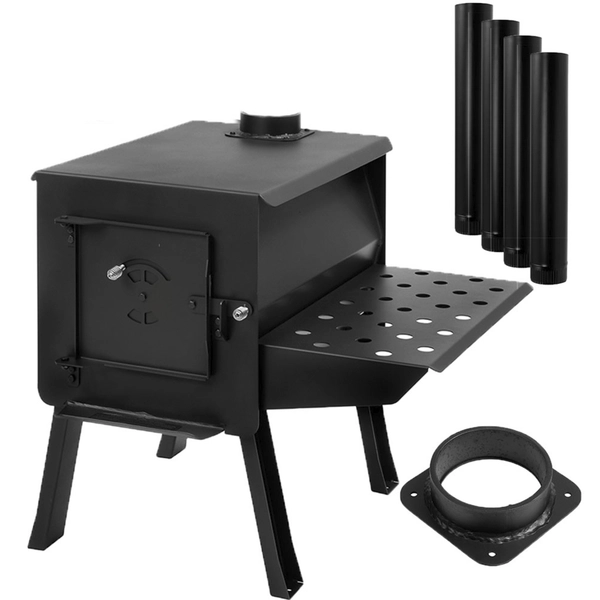

Kit Includes: "Grizzly" Campstove, Attachable Pipe Collar (AC-CSPC), Four 2' Pipe Sections (AC-CSPIPEKIT), and Attachable Shelf (AC-CSSHELFL).

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors. Removable legs fit inside the stove body, and the stove's top edges are bent to double as handy carrying handles.

The 4” diameter pipe outlet (with included pipe collar) is offset to provide maximum cooking space, and the top of the stove gets more than hot enough for cooking- this model can reach 800° F. The Grizzly is also large enough to heat wall tents up to 16' x 24'.

NOTE: NOT for use in homes. Only for use outdoors.

  • HexaTech™ Hexagonal firebox design provides long burn times and even heat distribution

  • Circular door damper and in-door air redirect for easy start-ups and precise temperature control

  • High temp. fiberglass door gasket is a unique feature that gives more efficient, longer-lasting burns

  • Included spring handles keep the door latch and damper controls cool to the touch

Specifications

General features

Recommended chimney diameter
4"
Flue outlet diameter
4"
Firebox size (Height)
15"
Firebox size (Width)
14 1/2"
Firebox size (Depth)
23 1/2"
Overall dimension (Height)
25 3/4"
Overall dimension (Width)
17"
Overall dimension (Depth)
28"
Door opening size (Height)
8"
Door opening size (Width)
8"
Distance-center of the flue outlet to back unit
3 1/2"
Distance-center of the flue outlet to side unit
9"
Steel thickness-body
12 Ga
Steel thickness-top
12 Ga
Warranty
Limited 1 year to carbon steel and welds of firebox
Maximum log length
22"
Mobile home approved
No
Shipping weight
96 lb (44 kg) 75 lb (34 kg)
Log positioning
Loading over depth
Door type
Steel

Appliance performance

Fuel type
Dry cordwood
Overall firebox volume
2.7 ft³

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall48"48"48"48"Clearance - Corner48"48"48"48"Clearance - Side wall48"48"48"48"Clearance - Base of the unit to ceiling**77 1/2"77 1/2"77 1/2"77 1/2"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.
