Drolet
DroletSKU: DB03186

FOX

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Among the most compact on the market, the Fox wood stove can heat up to 1,200 ft².

Full description
18 1/2"L X 28 7/8"P X 28 3/4"H
250 - 1,200 ft²
17"
1.8 g/h
Full specifications
Alain
ALAIN'S ADVICE
Description

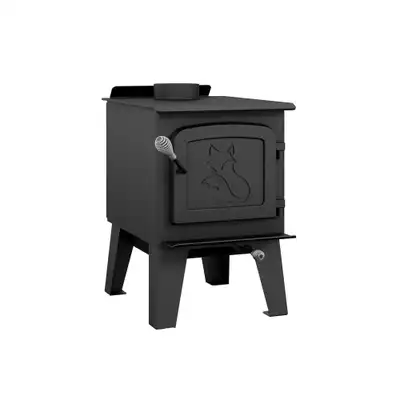

Among the most compact on the market, the Fox wood stove can heat up to 1,200 ft². With a maximum heat output of 45,000 BTU/h. Non-catalytic and EPA certified at an emission rate of 1.8 g/h, this model can efficiently heat small spaces. Its cast iron door, superimposed with steel sheets, is decorated with a fox. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus able to empty them less frequently. Packaged in a rigid cardboard box for ease of transport, this appliance requires simple assembly.

Included: steel legs, air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper, stainless steel heat shield

▪ Up to 5 hours burn time
▪ Up to 17" logs
▪ 1.55 ft³ firebox
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation
▪ This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
18 1/2"
Overall dimension (Height)
28 3/4"
Overall dimension (Depth)
28 7/8"
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 5/8"
Distance-center of the flue outlet to side unit
9 1/4"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Cast iron frame with steel inside
Door opening size (Width)
12"
Door opening size (Height)
7 5/8"
Steel thickness-body
3/16"
Steel thickness-top
1/4"
Firebox size (Width)
14 1/4"
Firebox size (Height)
11 3/4"
Firebox size (Depth)
19 1/8"
Log positioning
Loading over depth
Maximum log length
17"
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
235 lb (107 kg)
Approved as add-on to an existing furnace
No

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
250 - 1,200 ft²
Overall firebox volume
1.8 ft³
EPA loading volume
1.55 ft³
Maximum burn time(9)
5 h
Maximum heat output-dry cordwood(4)
45,000 BTU/h (13.19 kW)
Minimum overall heat output rate(4)(5)
12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4)(5)
26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
74 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
79 %
Optimum efficiency(1)(2)
80 %
Optimum heat transfer efficiency(8)
79 %
Average particulate emission rate(3)
1.8 g/h
Average CO(10)
74 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14"14"14"14"Clearance - Side wall18"18"18"18"Clearance - Corner11"11"11"11"Clearance - Base of the unit to ceiling**84"84"84"84"
