Enerzone

EnerzoneSKU: EB00044

DESTINATION 2.3-I

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

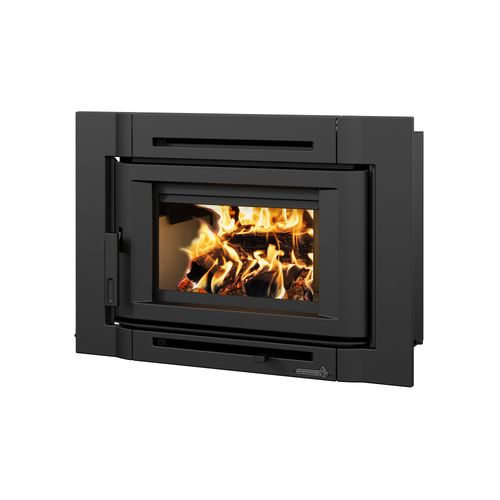

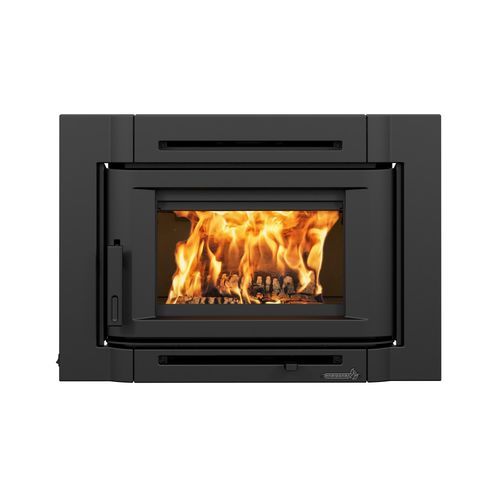

The Destination 2.3-I is really a blend of technological improvement and design advancement.

Full description

Dimension35 7/8"L X 22 3/4"P X 25"H

Recommended heating area500 - 2,100 ft²

Maximum log length20"

Average particulate emission rate2.3 g/h

Full specifications

INSERT CONFIGURATOR

Recommended for installation

These options allow you to get the most out of your appliance.

AC012985"Ø FRESH AIR INTAKE KIT

Out of stock

AC01315RIGID FIRESCREEN

Out of stock

AC01321BOTTOM FACEPLATE BACKING PLATE 44" X 6"

Out of stock

AC0132229" X 44" FACEPLATE BACKING PLATE KIT

Out of stock

AC013232" OR 4" PROJECTION KIT FOR INSERT

Out of stock

AC0133229" X 50" FACEPLATE BACKING PLATE KIT

Out of stock

AC01333BOTTOM FACEPLATE BACKING PLATE 50" X 6"

Out of stock

Subtotal:CAD $0.00

Accessories

Description

The Destination 2.3-I is really a blend of technological improvement and design advancement. Cast iron was the material of choice for the smooth contemporary surround and designed for a flush finish designed to be installed in a masonry fireplace. An optional backing plate is available for larger masonry openings. Maintenance of electrical components was made easy with the conception of a slick, drawer-like system to which the blower assembly attaches. The heat activated blower assembly (90 CFM) can be operated in automatic, manual or OFF mode.

Specifications

General features

Mobile home approved

Premium quality blower included (CFM)

90 CFM included

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

5 5/8"

Distance-center of the flue outlet to side unit

13 1/2"

Recommended chimney diameter

Type of chimney

Liner - ULC-S635, CAN/ULC-S640, UL1777

Minimum chimney height

12'

Overall dimension (Width)

35 7/8"

Overall dimension (Height)

25"

Overall dimension (Depth)

22 3/4"

Door type

Single, glass with cast iron frame

Door opening size (Width)

17 1/2"

Door opening size (Height)

8 3/4"

Glass type

Ceramic glass

Glass surface - W x H

18" x 11 7/8"

Steel thickness-body

3/16"

Steel thickness-top

5/16"

Firebox size (Width)

21"

Firebox size (Height)

11 7/8"

Firebox size (Depth)

16 3/4"

Maximum log length

20"

Log positioning

Loading over width

Firebox lined with refractory bricks

Yes

Baffle type

C-Cast or equivalent

Minimum fireplace opening (Width)

28 7/8"

Minimum fireplace opening (Height)

23 3/4"

Minimum fireplace opening (Depth)

19 5/8"

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S628

USA Standard (safety)

UL 1482, UL 737

Warranty

Limited lifetime

Shipping weight

478 lb (217 kg)

Appliance performance

Fuel type

Dry cordwood (16" recommended)

Recommended heating area(9)

500 - 2,100 ft²

Overall firebox volume

2.4 ft³

EPA loading volume

1.95 ft³

Maximum burn time(9)

8 h

Maximum heat output-dry cordwood(4)

75,000 BTU/h (22 kW)

Minimum overall heat output rate(4)(5)

14,200 BTU/h (4.16 kW)

Maximum overall heat output rate(4)(5)

44,500 BTU/h (13.04 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

72 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

77 %

Optimum efficiency(1)(2)

79 %

Optimum heat transfer efficiency(8)

76 %

Average particulate emission rate(3)

2.3 g/h

Average CO(10)

69 g/h

Clearances

Canada

United States

Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Base of the unit to ceiling**84"84"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation and user's manual

Appliance dimensions
