EnerzoneSKU: EB00062-Bundle

SOLUTION 3.5

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

When the winter season sets in, it also brings "cocooning" rituals.

Full description
30 3/8"L X 29 1/2"P X 24 7/8"H
1,000 - 2,700 ft²
22"
1.6 g/h
Full specifications
INSERT CONFIGURATOR
Customize your productSubtotal: 0
Description

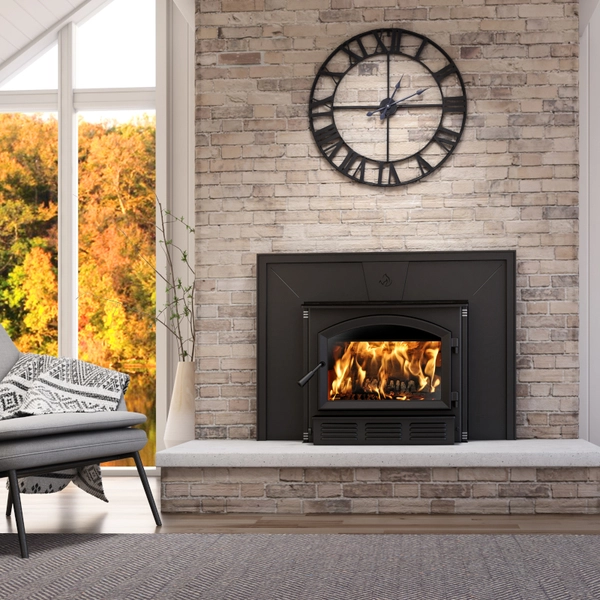

When the winter season sets in, it also brings "cocooning" rituals. Designed to replace your old ineffective masonry fireplace, the Solution 3.5 is your best choice for creating the perfect ambiance. Comfort, performance, pleasure, economy and saving are at the core of your heating experience with this wood insert designed for large spaces, in addition to being very respectful of the environment.

Thanks to its new ultra-efficient and clean secondary combustion system, this non-catalytic appliance offers a dazzling spectacle as the flames roll between the logs, through the large glass surface.

Complete your installation with the faceplate and trims of your choice. A firescreen is also available for those who wish to fully experience the crackle of a good wood fire.

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
144 CFM included
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
7 1/8"
Distance-center of the flue outlet to side unit
14 3/8"
Recommended chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'
Overall dimension (Width)
30 3/8"
Overall dimension (Height)
24 7/8"
Overall dimension (Depth)
29 1/2"
Door type
Single, glass with cast iron frame
Door opening size (Width)
19"
Door opening size (Height)
10 5/8"
Glass type
Ceramic glass
Glass surface - W x H
18 3/4" x 12 1/2"
Steel thickness-body
3/16"
Steel thickness-top
3/8"
Firebox size (Width)
22 7/8"
Firebox size (Height)
12 7/8"
Firebox size (Depth)
20 1/8"
Maximum log length
22"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
Minimum fireplace opening (Width)
31"
Minimum fireplace opening (Height)
26 1/4"
Minimum fireplace opening (Depth)
18 3/8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
562 lb (255 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
1,000 - 2,700 ft²
Overall firebox volume
3.5 ft³
EPA loading volume
2.88 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
110,000 BTU/h (32.2 kW)
Minimum overall heat output rate(4)(5)
17,200 BTU/h (5.0 kW)
Maximum overall heat output rate(4)(5)
57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.6 g/h
Average CO(10)
73 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit19"19"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84" 84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
