Heaters
/
Wood Inserts
/ESW0014
Englander
EnglanderSKU: ESW0014

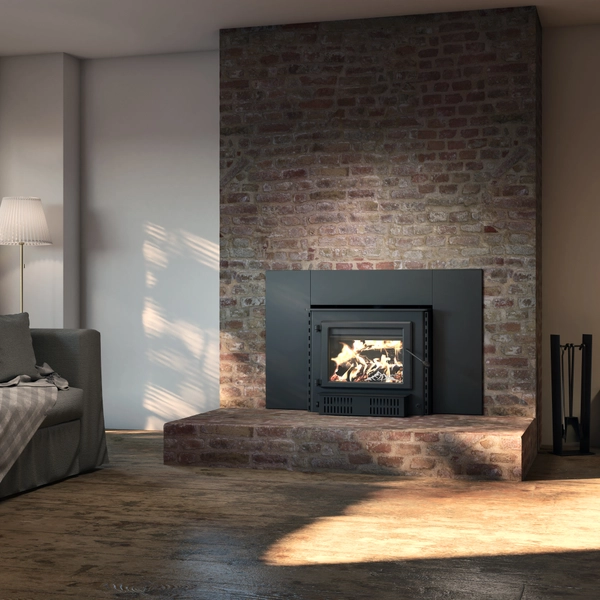

BLUE RIDGE 500-I

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

High efficiency 3.5 ft³ firebox

Full description
50"L X 28 7/8"P X 32"H
1,000 - 2,700 ft²
22" oriented East-West
1.6 g/h
Full specifications
INSERT CONFIGURATOR

Recommended for installation

These options allow you to get the most out of your appliance.

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Subtotal:CAD $0.00

Accessories

DELIVERY AVAILABLE IN CANADA AND USA*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

Here's an environmentally-friendly wood-burning insert designed for large spaces, offering comfort, efficiency, pleasure, economy and safety. Thanks to its new, ultra-efficient, clean-burning secondary combustion system, the non-catalytic Blue Ridge 500-I offers a dazzling spectacle as the flames roll between the logs through the large glass surface.

Included: 32" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc

▪ High efficiency 3.5 ft³ firebox
▪ Up to 10 hours burn time
▪ Spring faceplate adjustment system which easily adapts to any type of hearth
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

MANUFACTURER PROMOTION
Get a $100 mail-in rebate with the purchase of a Blue Ridge 500-I (ESW0014) wood insert. Hurry, this offer is valid on purchases made from November 1st to 30th, 2024. For more details and claim your free item: >https://www.englander-stoves.com/us/en/promotions/

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
144
Certified according to applicable standards
CAN/USA accredited laboratory
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
7 1/8"
Distance-center of the flue outlet to side unit
14 3/8"
Recommended chimney diameter
6"
Type of chimney
Liner ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height
12'
Overall dimension (Width)
50"
Overall dimension (Height)
32"
Overall dimension (Depth)
28 7/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
19"
Door opening size (Height)
10 5/8"
Glass type
Ceramic glass
Glass surface - W x H
16 5/8" x 11 3/4"
Steel thickness-body
3/16"
Steel thickness-top
3/8"
Firebox size (Width)
22 7/8"
Firebox size (Height)
13"
Firebox size (Depth)
20 1/8"
Maximum log length
22" oriented East-West
Log positioning
Loading over width and over depth
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
31"
Minimum fireplace opening (Height)
26 1/4"
Minimum fireplace opening (Depth)
18 3/8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited 5 years
Shipping weight
520 lb (236 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Heating area(9)
1,000 - 2,700 ft²
Overall firebox volume
3.5 ft³
EPA loading volume
2.88 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
110,000 BTU/h (32.2 kW)
Minimum overall heat output rate(4)(5)
17,200 BTU/h (5.0 kW)
Maximum overall heat output rate(4)(5)
57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.6 g/h
Average CO(10)
73 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit19"19"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation & Operation Manual
Wood insert manual | Safety notifications & general information
Appliance dimensions
