Heaters
/
Wood Inserts
/OB01705
Osburn
OsburnSKU: OB01705-Bundle

Osburn 1700-I

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

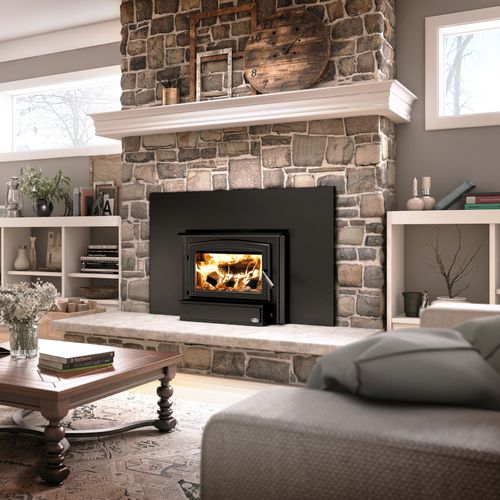

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth.

Full description
27 1/8"L X 22 3/8"P X 21 1/4"H
500 - 1,800 ft²
18"
2.4 g/h
Full specifications
INSERT CONFIGURATOR
Customize your productSubtotal: 0

Recommended for installation

Accessories

FREE DELIVERY ON ORDERS OVER $100*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device whose average particle emission rate is prodigiously low at 2.4 g/h!

Inside and out, this insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, stainless steel heat shield added to the C-Cast firestop, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims.

APPROVED FOR THE ISLAND OF MONTREAL

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
144 CFM included
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
5 3/4"
Distance-center of the flue outlet to side unit
12 3/4"
Recommended chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'
Overall dimension (Width)
27 1/8"
Overall dimension (Height)
21 1/4"
Overall dimension (Depth)
22 3/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/4"
Door opening size (Height)
8 3/4"
Glass type
Ceramic glass
Glass surface - W x H
15 3/4" x 9 3/8"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
19 5/8"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
13 1/2"
Maximum log length
18"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
Minimum fireplace opening (Width)
27 1/2"
Minimum fireplace opening (Height)
21 1/2"
Minimum fireplace opening (Depth)
12 7/8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
361 lb (164 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 1,800 ft²
Overall firebox volume
1.86 ft³
EPA loading volume
1.44 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
65,000 BTU/h (19 kW)
Minimum overall heat output rate(4)(5)
9,800 BTU/h (2.87 kW)
Maximum overall heat output rate(4)(5)
52,200 BTU/h (15.3 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
68 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
73 %
Optimum efficiency(1)(2)
76 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
2.4 g/h
Average CO(10)
103 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Wood insert manual | Safety notifications & general information
Appliance dimensions
Installation & Operation Requirements
