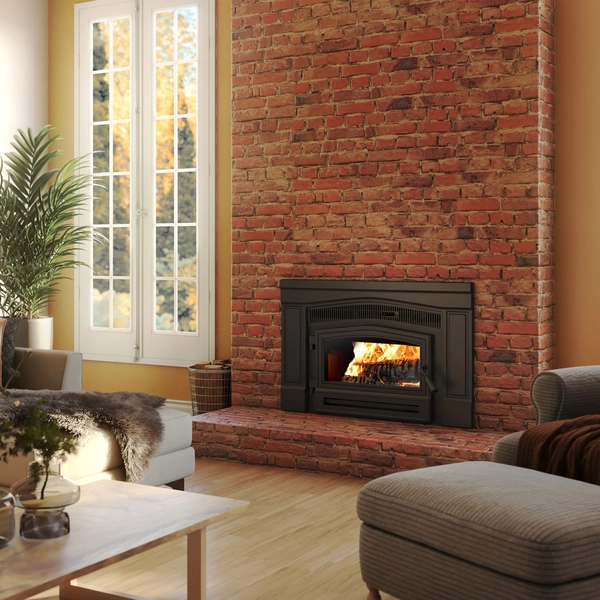

Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert.

Full description
36"L X 21"P X 23 7/8"H
250 - 1,200 ft²
17"
1.5 g/h
Full specifications
INSERT CONFIGURATOR
Customize your productSubtotal: 0
Description

Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door. Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.

The Matrix 1900 is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.

APPROVED FOR THE ISLAND OF MONTREAL

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
90 CFM included
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
5 1/8"
Distance-center of the flue outlet to side unit
10 5/8"
Recommended chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'
Overall dimension (Width)
36"
Overall dimension (Height)
23 7/8"
Overall dimension (Depth)
21"
Door type
Single, glass with cast iron frame
Door opening size (Width)
18 1/4"
Door opening size (Height)
7 7/8"
Glass type
Ceramic glass
Glass surface - W x H
18" x 8 1/8"
Steel thickness-body
3/16"
Steel thickness-top
3/16"
Firebox size (Width)
16 3/4"
Firebox size (Height)
8 7/8"
Firebox size (Depth)
12 3/8"
Maximum log length
17"
Log positioning
Loading over width
Moulded refractory panels
Yes
Firebox lined with refractory bricks
No
Baffle type
C-Cast or equivalent
Minimum fireplace opening (Width)
25"
Minimum fireplace opening (Height)
19"
Minimum fireplace opening (Depth)
15 1/2"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
332 lb (151 kg)
Minimum fireplace opening (Height at the back)
17 1/4"
Minimum fireplace opening (Width at the back)
21 1/2"

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
250 - 1,200 ft²
Overall firebox volume
1.1 ft³
EPA loading volume
1.03 ft³
Maximum burn time(9)
7 h
Maximum heat output-dry cordwood(4)
45,000 BTU/h (13.19 kW)
Minimum overall heat output rate(4)(5)
8,471 BTU/h (2.48 kW)
Maximum overall heat output rate(4)(5)
31,700 BTU/h (9.29 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
75 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
80 %
Optimum efficiency(1)(2)
82 %
Optimum heat transfer efficiency(8)
78 %
Average particulate emission rate(3)
1.5 g/h
Average CO(10)
34 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit1"1"Clearance - Combustible top mantle to unit1"1"Clearance - Base of the unit to ceiling**72"72"
