Drolet

DroletSKU: DB03073

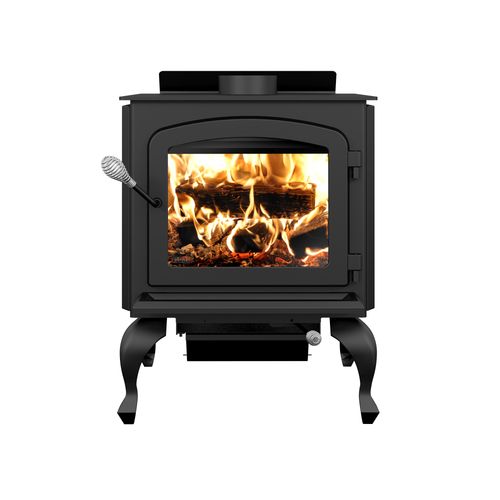

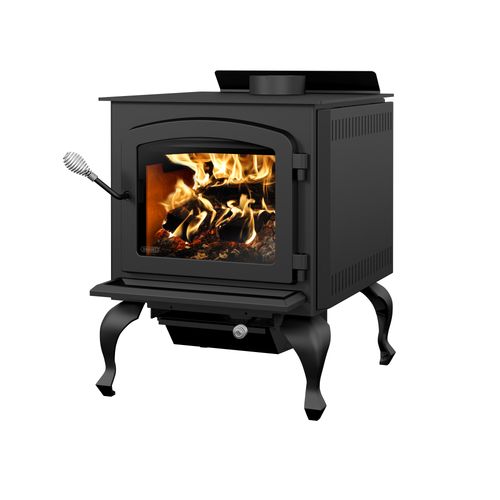

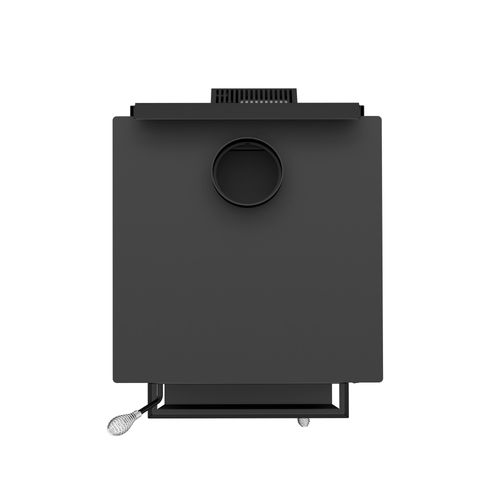

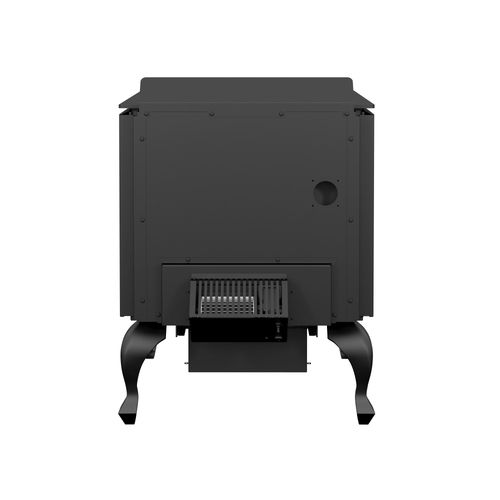

LEGEND III - WITH BLOWER

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Combining respect for the environment and performance, the Legend III is ideal for heating spaces up to 2,300 ft².

Full description

Dimension24 1/4"L X 32 3/8"P X 32 5/8"H

Recommended heating area900 - 2,300 ft²

Maximum log length20"

Average particulate emission rate0.95 g/h

Full specifications

ALAIN'S ADVICE

Recommended for installation

These options allow you to get the most out of your appliance.

AC02110HEATFLOW S5 - FORCED AIR SYSTEM

Out of stock

AC01397RIGID FIRESCREEN

Out of stock

AC02055QUICK CONNECT THERMODISC

Out of stock

AC012045"Ø FRESH AIR INTAKE KIT FOR WOOD STOVE ON LEGS

Out of stock

AC03513HEAT OPERATED ROTATING FAN (180 CFM)

Out of stock

Subtotal:USD $0.00

Accessories

Description

Combining respect for the environment and performance, the Legend III is ideal for heating spaces up to 2,300 ft². This non-catalytic appliance is among the most ecological on the market with a particle emission rate of 0.95 g/h. Its maximum power of 90,000 BTU/h will keep you warm all winter long. Its firebox is specifically designed for loading of logs over depth.

Included: blower, cast iron legs with ash drawer, top air deflector, ceramic glass, ash lip, air damper

▪ Up to 10 hours burn time
▪ Up to 20" logs
▪ 3.3 ft³ firebox
▪ Heavy duty 5/16" steel top reinforced with C-Cast heat shield
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Overall dimension (Width)

24 1/4"

Overall dimension (Height)

32 5/8"

Overall dimension (Depth)

32 3/8"

Premium quality blower included (CFM)

100 CFM included

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

7 1/2"

Distance-center of the flue outlet to side unit

12 1/8"

Recommended chimney diameter

Type of chimney

CAN/ULC S629, UL 103 HT (2100 °F)

Minimum chimney height

12'

Door type

Single, glass with cast iron frame

Door opening size (Width)

16"

Door opening size (Height)

10 3/4"

Glass type

Ceramic glass

Glass surface - W x H

14 5/8" x 11 3/4"

Steel thickness-body

3/16"

Steel thickness-top

5/16"

Firebox size (Width)

19"

Firebox size (Height)

14 1/8"

Firebox size (Depth)

21"

Log positioning

Loading over depth

Maximum log length

20"

Firebox lined with refractory bricks

Yes

Baffle type

High quality vermiculite

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S627

USA Standard (safety)

UL 1482, UL 737

Warranty

Limited lifetime

Shipping weight

436 lb (198 kg)

Approved as add-on to an existing furnace

Appliance performance

Fuel type

Dry cordwood (16" recommended)

Recommended heating area(9)

900 - 2,300 ft²

Overall firebox volume

3.3 ft³

EPA loading volume

2.67 ft³

Maximum burn time(9)

10 h

Maximum heat output-dry cordwood(4)

90,000 BTU/h (26.4 kW)

Minimum overall heat output rate(4)(5)

15,841 BTU/h (4.64 kW)

Maximum overall heat output rate(4)(5)

57,041 BTU/h (16.72 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

71.1 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

76.6 %

Optimum efficiency(1)(2)

78 %

Optimum heat transfer efficiency(8)

74 %

Average particulate emission rate(3)

0.95 g/h

Average CO(10)

61.3 g/h

Clearances

Canada

United States

Single wall pipe

Double wall pipe

Single wall pipe

Double wall pipe

Clearance - Back wall14 1/2"14 1/2"14 1/2"14 1/2"Clearance - Side wall12"12"12"12"Clearance - Corner10"10"10"10"Clearance - Base of the unit to ceiling**84"84"84"84"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Wood stove manual | Safety notifications & general information

Appliance dimensions

Installation & Operation Requirements
