Englander

EnglanderSKU: ESW0007

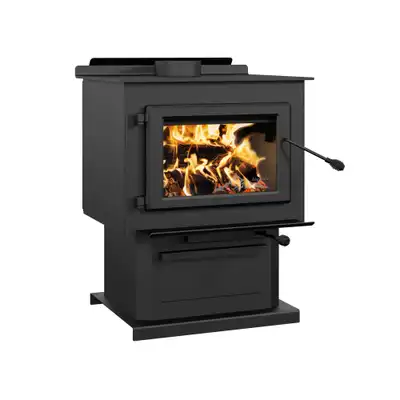

BLUE RIDGE 300P

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Appareil haute efficacité de 2.4 pi³

Full description

Dimension25 1/2"L X 28"P X 33 1/4"H

Heating area500 - 2,100 ft²

Maximum log length20" oriented East-West

Average particulate emission rate2.3 g/h

Full specifications

ALAIN'S ADVICE

Recommended for installation

These options allow you to get the most out of your appliance.

AC01315RIGID FIRESCREEN

Out of stock

AC013365"Ø FRESH AIR INTAKE KIT

Out of stock

AC02050BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM

Out of stock

AC02055QUICK CONNECT THERMODISC

Out of stock

AC020904' INSULATED FLEX PIPE FOR 5"Ø FRESH AIR INTAKE

Out of stock

AC013495"Ø FRESH AIR INTAKE REGISTER WITH AIRTIGHT DAMPER

Out of stock

Subtotal:USD $0.00

Description

Ideal for spaces up to 2,100 ft², this large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 2.3 g/h of fine particles. The unit is equipped with a top heat exchanger that redirects heat to the front of the unit.

Included: pedestal, ash drawer & lip, air intake damper & rear air deflector

▪ High efficiency 2.4 ft³ firebox
▪ Up to 8 hours burn time
▪ Steel top reinforced with a stainless steel heat shield
▪ High density refractory bricks
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Certified for mobile home and alcove installation

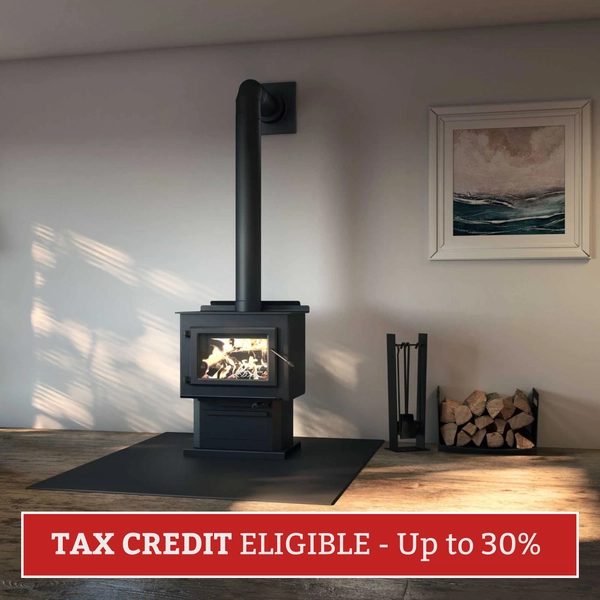

▪ Qualifies for the 30% US tax credit

Specifications

General features

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Overall dimension (Width)

25 1/2"

Overall dimension (Height)

33 1/4"

Overall dimension (Depth)

28"

Premium quality blower included (CFM)

Optional

Combustion technology

Non catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

6 1/2"

Distance-center of the flue outlet to side unit

12 3/4"

Recommended chimney diameter

Type of chimney

ULC-S629, UL 103 HT (2100 °F)

Minimum chimney height

12'

Door type

Single, glass with cast iron frame

Door opening size (Width)

17 1/2"

Door opening size (Height)

Glass type

Ceramic glass

Glass surface - W x H

14 7/8" x 9 1/4"

Steel thickness-body

3/16"

Steel thickness-top

5/16"

Firebox size (Width)

21"

Firebox size (Height)

12"

Firebox size (Depth)

16 1/2"

Log positioning

Loading over width

Maximum log length

20" oriented East-West

Firebox lined with refractory bricks

Yes

Baffle type

High quality vermiculite

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S627

USA Standard (safety)

1482, UL 737

Warranty

5 years limited

Shipping weight

365 lb (165 kg)

Appliance performance

Fuel type

Dry cordwood (16" recommended)

Heating area(9)

500 - 2,100 ft²

Overall firebox volume

2.4 ft³

EPA loading volume

1.95 ft³

Maximum burn time(9)

8 h

Maximum heat output-dry cordwood(4)

75,000 BTU/h (22 kW)

Minimum overall heat output rate(4)(5)

14,200 BTU/h (4.16 kW)

Maximum overall heat output rate(4)(5)

44,500 BTU/h (13.04 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

72 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

77 %

Optimum efficiency(1)(2)

79 %

Optimum heat transfer efficiency(8)

76 %

Average particulate emission rate(3)

2.3 g/h

Average CO(10)

69 g/h

Clearances

Canada

United States

Single wall pipe

Double wall pipe

Single wall pipe

Double wall pipe

Clearance - Back wall14 1/2"6"11"6"Clearance - Side wall22"22"22"22"Clearance - Corner12"12"12"12"Clearance - Base of the unit to ceiling**84" 84"84"84"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation & Operation Manual

Wood stove manual | Safety notifications & general information

Appliance dimensions
