Englander
0
Englander
EnglanderSKU: ESW0012

BLUE RIDGE 500

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

High efficiency 3.5 ft³ firebox

Full description
28 1/8"L X 31 1/4"P X 35 1/8"H
1,000 - 2,700 ft²
22" oriented East-West
1.6 g/h
Full specifications
Alain
ALAIN'S ADVICE
Description

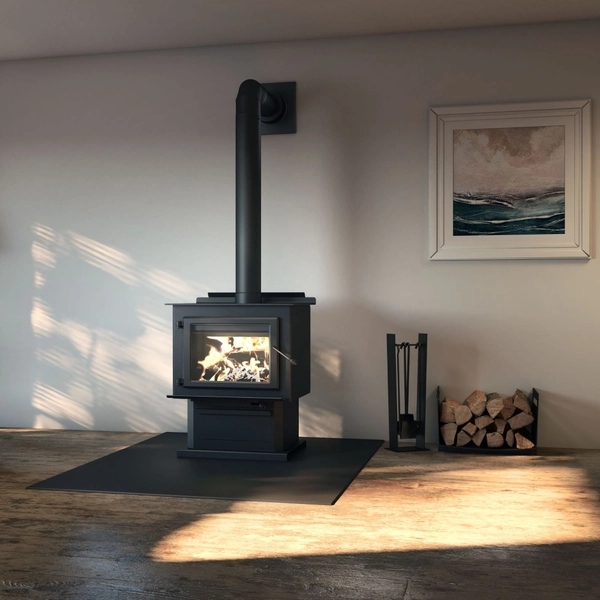

Ideal for heating spaces up to 2,700 ft², the Blue Ridge 500 is a wood stove with an impressive output of 110,000 BTU/h. EPA certified at 1.6 g/h, this non-catalytic appliance represents an eco-responsible heating source. Its very large combustion chamber allows logs to be loaded across the width and depth.

Included: pedestal, ash drawer & lip, air intake damper & rear air deflector

▪ High efficiency 3.5 ft³ firebox
▪ Up to 10 hours burn time
▪ 5/16" steel top reinforced with a heat shield
▪ High density refractory bricks
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Certified for mobile home and alcove installation
▪ Qualifies for the 30% US tax credit

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
CAN/USA accredited laboratory
Overall dimension (Width)
28 1/8"
Overall dimension (Height)
35 1/8"
Overall dimension (Depth)
31 1/4"
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
8"
Distance-center of the flue outlet to side unit
14 1/8"
Recommended chimney diameter
6"
Type of chimney
ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
19"
Door opening size (Height)
9 7/8"
Glass type
Ceramic glass
Glass surface - W x H
16 5/8" x 11 3/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
22 7/8"
Firebox size (Height)
13"
Firebox size (Depth)
20 1/8"
Log positioning
Loading over width and over depth
Maximum log length
22" oriented East-West
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited 5 years
Shipping weight
480 lb (218 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Heating area(9)
1,000 - 2,700 ft²
Overall firebox volume
3.5 ft³
EPA loading volume
2.88 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
110,000 BTU/h
Minimum overall heat output rate(4)(5)
17,200 BTU/h (5.0 kW)
Maximum overall heat output rate(4)(5)
57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.6 g/h
Average CO(10)
73 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall13 3/4"8"13 3/4"8"Clearance - Side wall22"19"22"19"Clearance - Corner12"12"12"12"Clearance - Base of the unit to ceiling**84" 84" 84" 84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.
