Osburn
0
Osburn
OsburnSKU: OB02015-Bundle

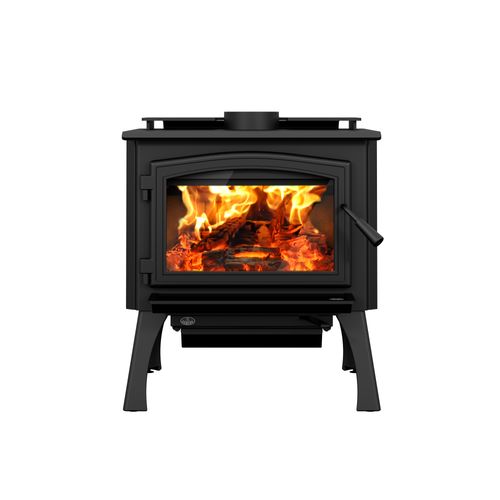

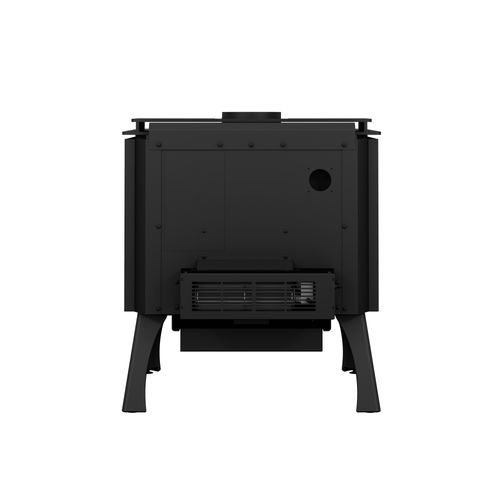

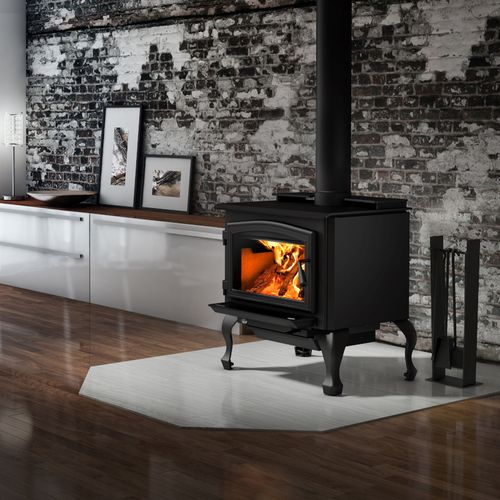

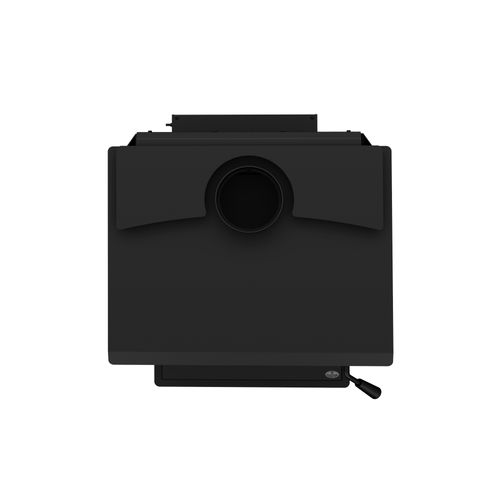

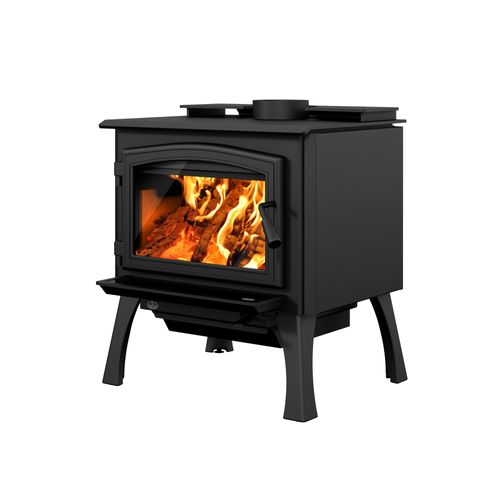

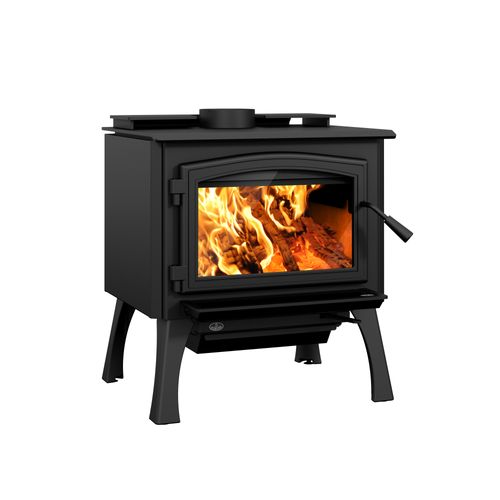

Osburn 2000 with bower

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Year after year, the 2000 model remains one of the most popular wood stoves in the Osburn range.

Full description
27"L X 29"P X 33 1/8"H
500 - 2,100 ft²
20"
2.3 g/h
Full specifications
Alain
ALAIN'S ADVICE
Customize your productSubtotal: 0
Description

Year after year, the 2000 model remains one of the most popular wood stoves in the Osburn range.

In 2018, Osburn redefines the design of this heating appliance and sets new standards for emissions. This new version keeps its 2.4 cubic foot combustion chamber and still offers the same power with an impressive emission performance of around 2.3 g/h. With this model, the 130 CFM fan is still included; unquestionably the best opportunity this season!

Its new cast iron door gives a youthful look with elegant lines while retaining the spirit of wood heating. Customize your appliance to suit your décor: refined door overlays, new leg designs, glass ash lip with integrated ash pan; significant innovations for the most seasoned experts.

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
27"
Overall dimension (Height)
33 1/8"
Overall dimension (Depth)
29"
Premium quality blower included (CFM)
130 CFM included
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 5/8"
Distance-center of the flue outlet to side unit
13 1/2"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
17 1/8" x 10 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 3/4"
Log positioning
Loading over width
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
390 lb (177 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22 kW)
Minimum overall heat output rate(4)(5)
14,000 BTU/h (4.34 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14 1/2"6"11"6"Clearance - Side wall17"17"16"16"Clearance - Corner10"7"10"7"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

Similar Products

Compare the features of this appliance with similar products
Current product

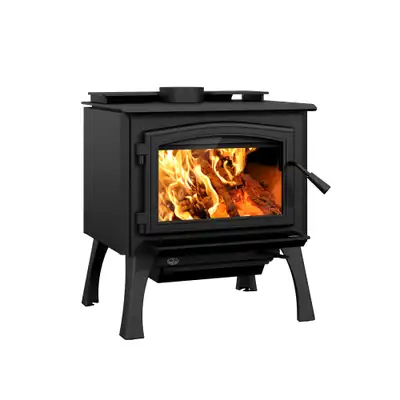

Osburn OB02015

Osburn 2000 with bower

DIMENSION
W : 27"
D : 29"
H : 33 1/8"
Recommended heating area
500 - 2,100 ft²
Maximum heat output-dry cordwood
75,000 BTU/h (22 kW)

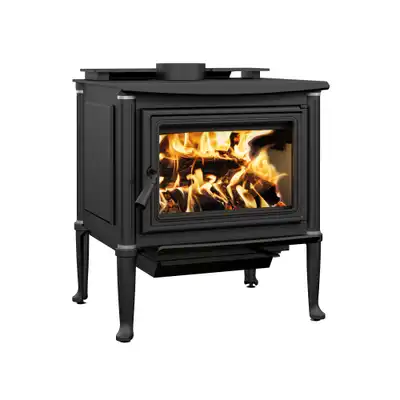

Enerzone EB00045

HARMONY 2.3

DIMENSION
W : 25 5/8"
D : 25 3/4"
H : 30 1/8"
Recommended heating area
500 - 2,100 ft²
Maximum heat output-dry cordwood
75,000 BTU/h (22 kW)

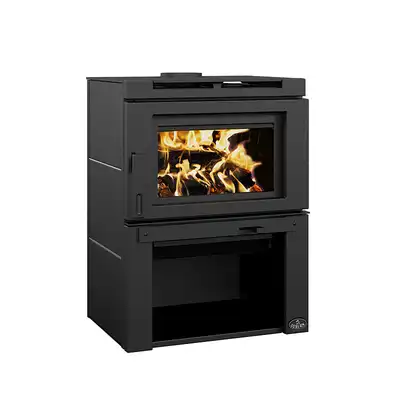

Osburn OB02032

Matrix with blower

DIMENSION
W : 27 1/8"
D : 25"
H : 36 7/8"
Recommended heating area
500 - 2,100 ft²
Maximum heat output-dry cordwood
75,000 BTU/h (22.0 kW)

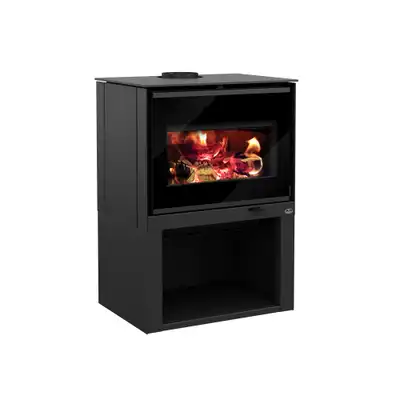

Osburn OB02042
