Ventis
VentisSKU: VB00016
HES240
Out of stock
Curbside Delivery.See Shipping & Delivery PolicyLarge wood stove on pedestal
Full description
title
Recommended for installation
These options allow you to get the most out of your appliance.
Out of stock
AC01315RIGID FIRESCREEN
Out of stock
AC013365"Ø FRESH AIR INTAKE KIT
Out of stock
Out of stock
Description

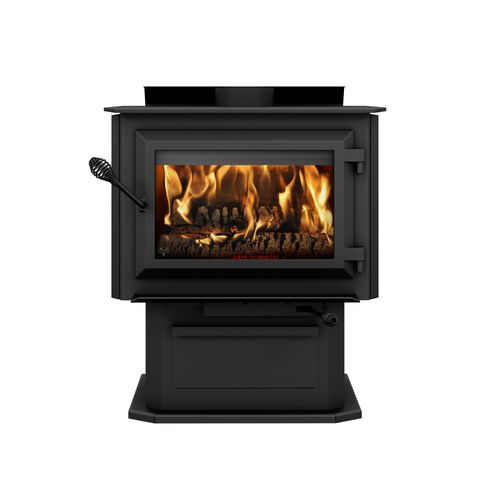

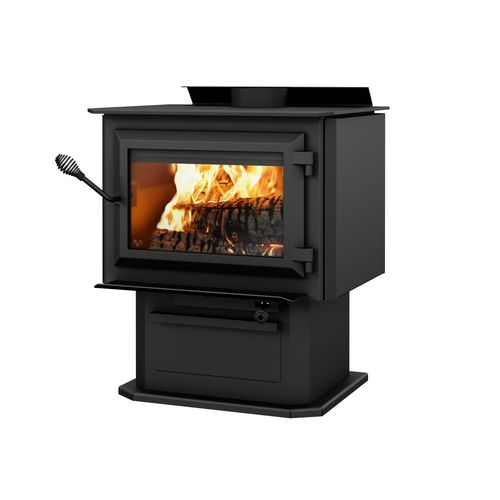

▪Large wood stove on pedestal
▪EPA certified at 2.3 g/h
▪Solidity and manufacturing quality
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Cast iron door
▪Top heat deflector and side panels
▪Stainless steel heat shield
Specifications
General features
Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
CAN/USA accredited laboratory
Overall dimension (Width)
26 3/4"
Overall dimension (Height)
32 1/8"
Overall dimension (Depth)
26 3/4"
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 3/8"
Distance-center of the flue outlet to side unit
13 3/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16 7/8" x 10 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
17 1/8"
Log positioning
Loading over width
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 certified
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
375 lb (170 kg)
Appliance performance
Fuel type
Dry cordwood
(16" recommended)
Heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h
Clearances
Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
