Drolet
DroletSKU: DF02003

HEAT COMMANDER

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

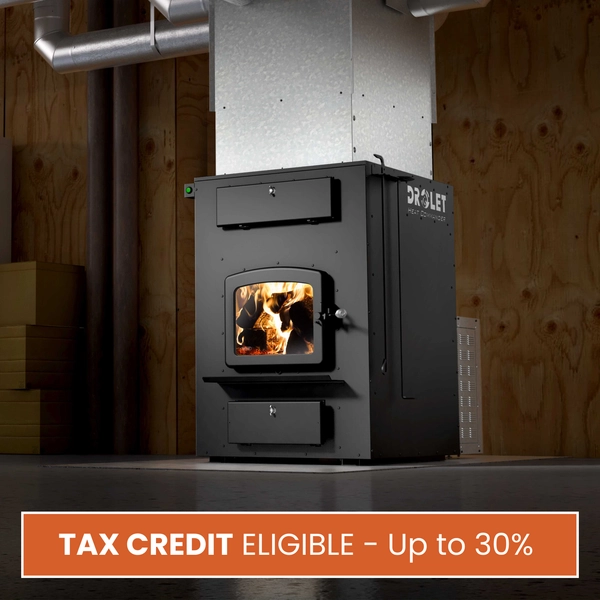

Among the most efficient systems on the market based on distributed energy, the Heat Commander is a central heating system that is both cutting edge and accessible thanks to its innovative design and ease of use.

Full description
27 3/4"L X 51 1/8"P X 63 1/2" min.H
1,000 - 2,500 ft²
21"
10 h
Full specifications
Alain
ALAIN'S ADVICE
Description

Among the most efficient systems on the market based on distributed energy, the Heat Commander is a central heating system that is both cutting edge and accessible thanks to its innovative design and ease of use. EPA certified, its 310,000 BTU capacity makes this furnace versatile and ideal for heating spaces up to 2,500 ft². The Heat Commander’s overall thermal power is notably much higher than most comparable systems.

Result of our victory in an international innovation competition, the Heat Commander is the very first wood furnace on the market to offer Dual Fire© technology with a two-stage electronic combustion control. Find peace of mind with a self-regulated combustion that allows easy ignition. Its automated air supply and flame adjustment systems synchronize with your thermostat to offer additional safety, optimize comfort and reduce emissions with minimal maintenance.

Included: blower, thermostat, hot air plenum, combustion-state indicator light, automated combustion control, ash lip, ash lip, ash drawer, poker and scraper

▪ Intuitive start mode for fast and clean ignition
▪ Optimized combustion for low creosote formation
▪ Uninterrupted heat with on-demand boost based on thermostatic demand
▪ Among the lowest burn rates on the market (firewood savings)
▪ Up to 10 hours burn time
▪ 3.6 ft³ firebox
▪ 21" logs (loading over depth and width)
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Air filters help filter dirt before distributing hot air in your installation in addition to protecting the blower. The use of filters is strongly recommended.
▪ The fresh air return adapter can be added to the blower box to increase the efficiency of your system. This option allows you to take fresh air from the rooms and bring it to the furnace to be heated and redistributed in these same rooms. It allows more even air circulation to increase comfort.

In the USA, get a 22% tax credit on your Drolet Heat Commander purchase
The first tax credit that covers the cost of the appliance, chimney, air distribution ducts, labor for installation and related material. [Click here to download the manufacturer's certificate of qualification] (https://www.drolet.ca/file/Certificat%20Tax%20Credit%20Drolet%202023-2032.pdf).

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

High-efficiency certified appliance
Yes, EPA 2020 approved
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
Included
Blower (hp | speed | CFM)
1/3 | 1 | 1,135
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Overall dimension (Width)
27 3/4"
Overall dimension (Height)
63 1/2" min.
Overall dimension (Depth)
51 1/8"
Evacuation direction
Horizontal
Distance-center of the flue outlet to floor
37 1/8"
Distance-center of the flue outlet to side unit
13 7/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
13 3/4"
Door opening size (Height)
10"
Glass type
Ceramic glass
Glass surface - W x H
12 3/8 x 10 1/8"
Baffle type
C-Cast or equivalent
Firebox size (Width)
18 3/4"
Firebox size (Height)
16 1/8"
Firebox size (Depth)
22 1/2"
Maximum log length
21"
Log positioning
Loading over width and over depth
Firebox lined with refractory bricks
Yes
Steel thickness-top
1/4"
Steel thickness-body
3/16"
Filter - Dimensions (Width x Height x Depth)
15" x 20" x 1" (option)
Hot air plenum - Minimum height of the furnace with plenum
63 1/2" min. for 69" ceiling | 73 1/4" to 88" for a ceiling of 78 1/4" to 93" and more
Hot air plenum - Height (minimum - maximum)
22 3/8" x 26 7/8"
Canadian Standard (safety)
CAN/CSA B366.1
USA Standard (safety)
UL 391
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Warranty
Limited lifetime
Shipping weight
758 lb (344 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(12)
1,000 - 2,500 ft²
Overall firebox volume
3.6 ft³
Maximum burn time(12)
10 h
Maximum input capacity (dry cordwood) (1)
310,000 BTU
Nominal heat output at 15lb/ft³ fuel loading density
75,000 BTU
Minimum overall heat output rate(7)
19,354 BTU/h (5.6 kW)
Maximum overall heat output rate(7)
47,052 BTU/h (13.8 kW)
Minimum average overall efficiency (HHV)(11)(10)
76.6 %
Maximum average overall efficiency (LHV)(11)(9)
82 %
Minimum delivered heat output rate(6)
13,297 BTU/h (3.9 kW)
Maximum delivered heat output rate(6)
42,234 BTU/h (12.4 kW)
Minimum average delivered efficiency (HHV)(8)(10)
60.7 %
Maximum average delivered efficiency (LHV)(8)(9)
65 %
Optimum efficiency(3)
83.2%
Optimum heat transfer efficiency
81 %
Average particulate emission rate(4)(5)
0.095 lb/mmBTU (0.041 g/MJ)
Average CO(13)
8.78 lb/mmBTU (3.78 g/MJ)
Average electrical power consumption (2)
330 W

Clearances

Canada
United States
Clearance - Back wall of the blower box14 1/4"14 1/4"Clearance - Side wall11"11"Clearance - Opposite side wall 24"24"Clearance - Base of the unit to ceiling**69" min.69" min.Clearance - Plenum | Ducts to the ceiling5" from the plenum | 1" from ducts5" du plénum | 1" des conduitsClearance - Recommended distance for maintenance on option side 30"30"Clearance - Floor protection in front of the unit (from door opening) 18"18"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
