Caddy
CaddySKU: PF01015-Bundle

CADDY WOOD FURNACE, COMBINED WOOD-ELECTRIC OR WOOD-OIL

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

**Only available in Canada** The Cadillac of furnaces Advanced combustion technology and state-of-the-art design have earned the Caddy furnace a reputation as the most efficient furnace ever produced by PSG-and with good reason! So how do you make a star product even better? With performance-enhancing electronics that take our flagship furnace to the next level. <h2>Streamlined electronics and controls 2</h2> The electronic components and controls of the redesigned Caddy have been reduced to just three components for greater ease of use and efficiency: * An integrated PC board and RTD probe to control blower speeds and plenum temperatures, optimizing home comfort and furnace performance. * A blower assembly equipped with a prewired main power board for plug and play convenience upon installation. * A touchscreen LCD control module to make input and output control a breeze. <h2>A unique heat exchanger system and outstanding performance 2</h2> The secret behind the Caddy’s outstanding performance is its built-in heat exchanger system, which ensures that heat is transferred quickly and efficiently via the smoke ducts inside the furnace instead of being lost up the chimney. It uses up to 30% less firewood and reduces particulate emissions by as much as 80%. That’s great news for your heating bill-and the environment! <h2>Alternate source of heat 2</h2> With Caddy series furnaces, you’ll always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy comes in four different configurations: wood-only, wood+electric combo, wood+oil combo, and wood add-on furnace. ***When installed as an add-on furnace, only a SERIES configuration is allowed in Canada. The blower assembly is not required in a SERIES configuration.

Full description
32 1/4"L X 52 7/8"P X 49"H
1,000 - 2,500 ft²
22"
15 h
Full specifications
Customize your productSubtotal: 0
Description

Only available in Canada

The Cadillac of furnaces
Advanced combustion technology and state-of-the-art design have earned the Caddy furnace a reputation as the most efficient furnace ever produced by PSG-and with good reason! So how do you make a star product even better? With performance-enhancing electronics that take our flagship furnace to the next level.

Streamlined electronics and controls 2


The electronic components and controls of the redesigned Caddy have been reduced to just three components for greater ease of use and efficiency:

  • An integrated PC board and RTD probe to control blower speeds and plenum temperatures, optimizing home comfort and furnace performance.
  • A blower assembly equipped with a prewired main power board for plug and play convenience upon installation.
  • A touchscreen LCD control module to make input and output control a breeze.

A unique heat exchanger system and outstanding performance 2


The secret behind the Caddy’s outstanding performance is its built-in heat exchanger system, which ensures that heat is transferred quickly and efficiently via the smoke ducts inside the furnace instead of being lost up the chimney. It uses up to 30% less firewood and reduces particulate emissions by as much as 80%. That’s great news for your heating bill-and the environment!

Alternate source of heat 2


With Caddy series furnaces, you’ll always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy comes in four different configurations: wood-only, wood+electric combo, wood+oil combo, and wood add-on furnace.

***When installed as an add-on furnace, only a SERIES configuration is allowed in Canada.
The blower assembly is not required in a SERIES configuration.

Specifications

General features

High-efficiency certified appliance
CSA B415.1-10 only approved for Canada
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
Optional
Blower (hp | speed | CFM)
1/3 / 4 / 1,900
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Overall dimension (Width)
32 1/4"
Overall dimension (Height)
49"
Overall dimension (Depth)
52 7/8"
Evacuation direction
Horizontal
Distance-center of the flue outlet to floor
44"
Distance-center of the flue outlet to side unit
12 7/8"
Door type
Single glass with cast iron frame
Door opening size (Width)
13 3/4"
Door opening size (Height)
10"
Glass type
Ceramic glass
Glass surface - W x H
12 1/2" x 10 1/8"
Baffle type
C-Cast or equivalent
Firebox size (Width)
17"
Firebox size (Height)
16"
Firebox size (Depth)
22 5/8"
Maximum log length
22"
Log positioning
Loading over depth
Firebox lined with refractory bricks
Yes
Steel thickness-top
1/4"
Steel thickness-body
3/16"
Filter - Dimensions (Width x Height x Depth)
14" x 25" x 1"
Hot air plenum - Height (minimum - maximum)
24 1/2" x 28 5/8"
Air return plenum - Dimension (Width)
15 3/4"
Air return plenum - Dimension (Width x Depth)
24 3/4"
Electric element - Recommended
18 kW
Electric element - More options
15 kW | 20 kW
Electric element - Location
Right or left
Approved as add-on to an existing furnace
Yes
Canadian Standard (safety)
CSA B366.1, CSA C22.2 no 236, CAN/CSA B140.4
USA Standard (safety)
UL 391, UL 1995, UL 727
Canadian Standard (emissions)
CSA B415.1-10
Warranty
Limited lifetime
Shipping weight
576 lb (261 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(12)
1,000 - 2,500 ft²
Overall firebox volume
3.6 ft³
Maximum burn time(12)
15 h
Maximum input capacity (dry cordwood) (1)
310,000 BTU
Nominal heat output at 15lb/ft³ fuel loading density
75,000 BTU/h
Minimum overall heat output rate(7)
15,436 BTU/h (4.5 kW)
Maximum overall heat output rate(7)
49,638 BTU/h (14.5 kW)
Minimum average overall efficiency (HHV)(11)(10)
76.7 %
Maximum average overall efficiency (LHV)(11)(9)
82.9 %
Minimum delivered heat output rate(6)
12,635 BTU/h (3.7 kW)
Maximum delivered heat output rate(6)
44,857 BTU/h (13.1 kW)
Minimum average delivered efficiency (HHV)(8)(10)
62.7 %
Maximum average delivered efficiency (LHV)(8)(9)
68.3 %
Optimum efficiency(3)
84.9 %
Average particulate emission rate(4)(5)
0.654 lb/mmBTU (0.282 g/MJ)
Average CO(13)
11.18 lb/mmBTU (4.81 g/MJ)
Average electrical power consumption (2)
432 W

Clearances

Canada
United States
Clearance - Back wall of the blower box24"24"Clearance - Side wall6"6"Clearance - Opposite side wall 24"24"Clearance - Base of the unit to ceiling**72"72"Clearance - Plenum | Ducts to the ceiling6" from plenum | 1" from ducts6" from plenum | 1" from ductsClearance - Recommended distance for maintenance on option side 24"24"Clearance - Floor protection in front of the unit (from door opening) 18"16"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

Similar Products

Compare the features of this appliance with similar products
Current product
Caddy PF01015

CADDY WOOD FURNACE, COMBINED WOOD-ELECTRIC OR WOOD-OIL

DIMENSION
W : 32 1/4"
D : 52 7/8"
H : 49"
Recommended heating area
1,000 - 2,500 ft²
Maximum burn time
15 h
Caddy PF01102

MAX CADDY WOOD FURNACE, COMBINED WOOD-ELECTRIC OR WOOD-OIL

DIMENSION
W : 36 1/4"
D : 60 1/8"
H : 50 1/2"
Recommended heating area
1,500 - 3,500 ft²
Maximum burn time
17 h

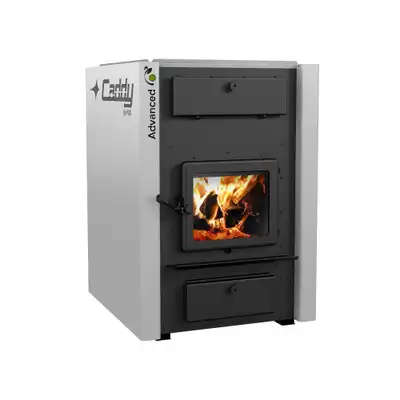

Caddy PF01020
