Century Heating
Century HeatingSKU: CB00027K3

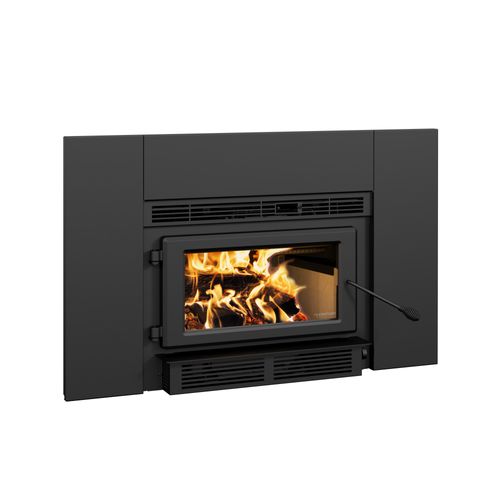

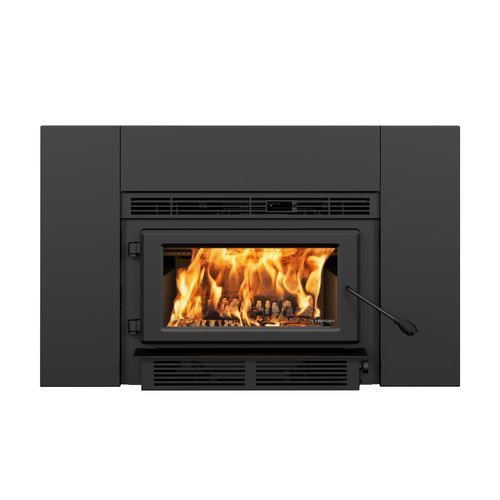

CW2100 + FACEPLATE + 35' LINER KIT
Out of stock
Free Curbside Delivery.See Shipping & Delivery PolicyTapered shape (top and sides) designed to fit the smallest masonry hearths
Full description
INSERT CONFIGURATOR
Recommended for installation
These options allow you to get the most out of your appliance.
AC01213FIRESCREEN DOOR
Out of stock
AC012985"Ø FRESH AIR INTAKE KIT
Out of stock
Out of stock
AC01214OFFSET LINER ADAPTOR
Out of stock
Accessories
Description
Ready-to-install kit

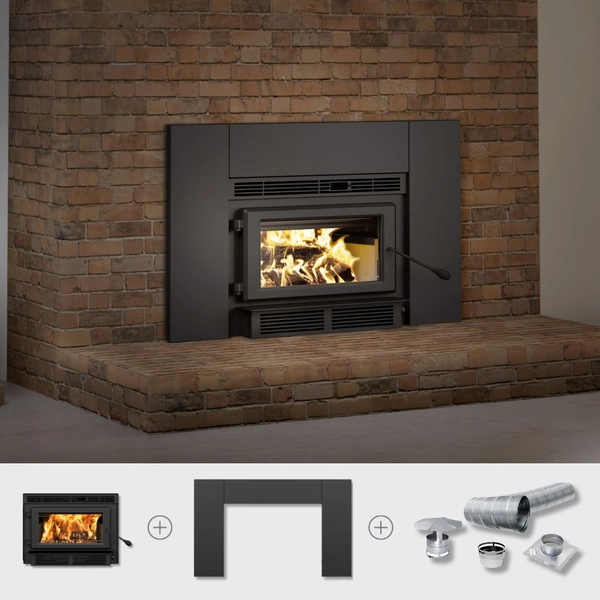

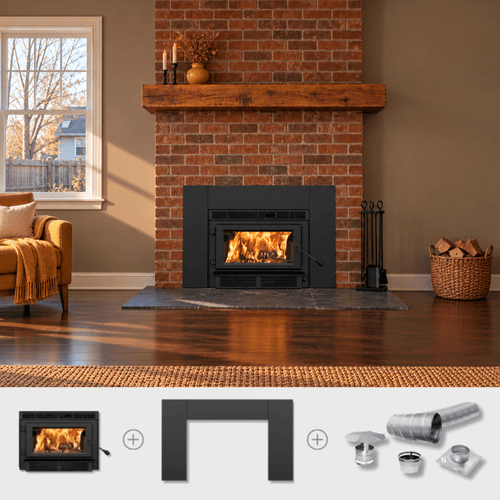

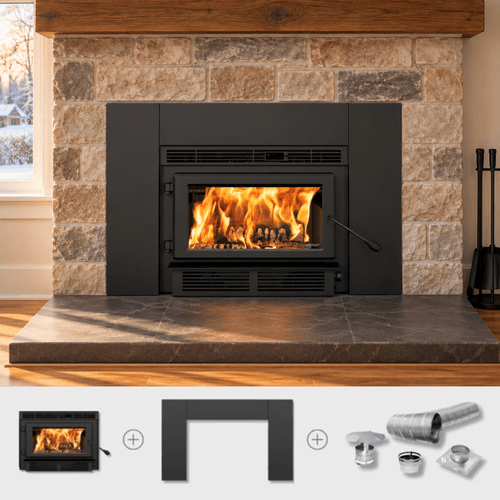

Take advantage of this cost-effective kit that includes everything you need for the installation of your wood insert. The kit features a 26" x 42" faceplate, a 35' flexible stainless-steel liner, a connector, a 13" x 13" flashing, and a chimney cap. With this ready-to-install kit, you get all the essential components in one convenient purchase for a hassle-free, simplified installation.
- Tapered shape (top and sides) designed to fit the smallest masonry hearths
- Blower with left/right power cord

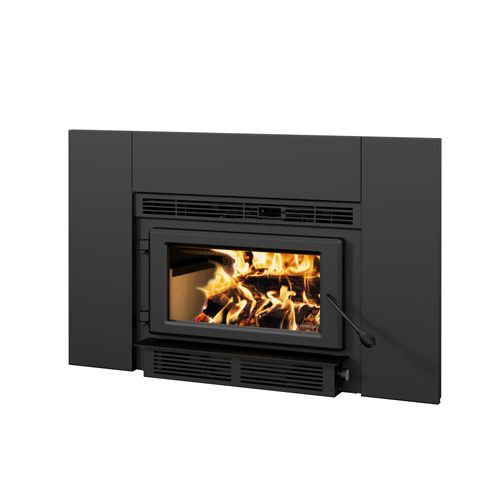

- Lightweight steel faceplate with hooks that snap onto the front of the unit
- Moulded high density refractory panels on the bottom of the appliance and grey bricks on the sides
- Reinforced appliance top with a stainless steel heat shield
- Cast iron door and ceramic glass
- EPA certified at 1.5 g/h
- Non-catalytic combustion system
- Designed and made in Canada

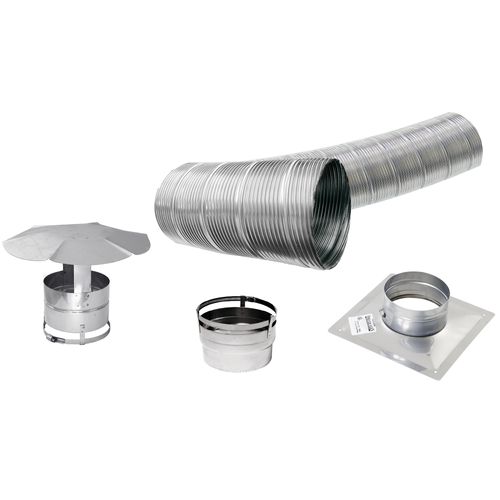

- Included: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc and 6'' liner kit (35' Vortex flexible stainless steel liner, connector, 13'' x 13'' flashing, screenless chimney cap).
Specifications
General features
Mobile home approved
No
Premium quality blower included (CFM)
90 CFM included
Certified according to applicable standards
CAN/USA accredited laboratory
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes

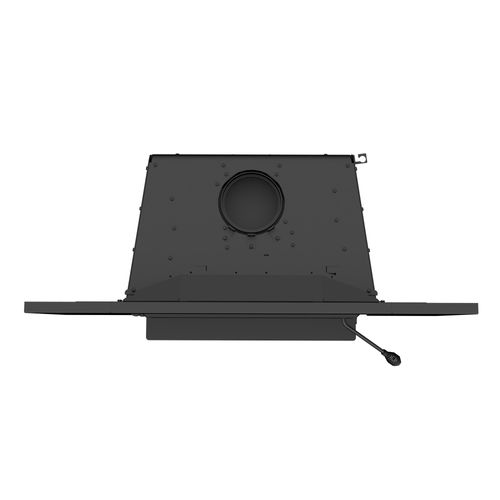

Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
5 1/8"
Distance-center of the flue outlet to side unit
10 5/8"
Recommended chimney diameter
6"
Type of chimney
ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height
12"
Overall dimension (Width)
27 7/8"
Overall dimension (Height)
20 1/8"
Overall dimension (Depth)
21 7/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
18 1/4"
Door opening size (Height)
7 7/8"
Glass type
Ceramic glass
Glass surface - W x H
17 3/8" x 8 1/8"
Steel thickness-body
3/16"
Steel thickness-top
3/16"
Firebox size (Width)
16 3/8"
Firebox size (Height)
8 3/4"
Firebox size (Depth)
12 3/8"
Maximum log length
17" (16" recommended)
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
Minimum fireplace opening (Width)
25"
Minimum fireplace opening (Height)
19"
Minimum fireplace opening (Depth)
15 1/2"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited 5 years
Shipping weight
287 lb (130 kg)
Minimum fireplace opening (Height at the back)
17 1/4"
Minimum fireplace opening (Width at the back)
21 1/2"
Appliance performance
Fuel type
Dry cordwood
Heating area(9)
900 - 1,800 ft²
Overall firebox volume
1.1 ft³
EPA loading volume
1.03 ft³
Maximum burn time(9)
7 h
Maximum heat output-dry cordwood(4)
45,000 BTU/h
Minimum overall heat output rate(4)(5)
8,471 BTU/h (2.48 kW)
Maximum overall heat output rate(4)(5)
31,700 BTU/h (9.29 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
75%
Average overall efficiency-dry cordwood (LHV)(5)(7)
80%
Optimum efficiency(1)(2)
82%
Optimum heat transfer efficiency(8)
78%
Average particulate emission rate(3)
1.5 g/h
Average CO(10)
34 g/h
