Heaters
/
Wood Inserts
/ESW0006
Englander
EnglanderSKU: ESW0006

BLUE RIDGE 150-I

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

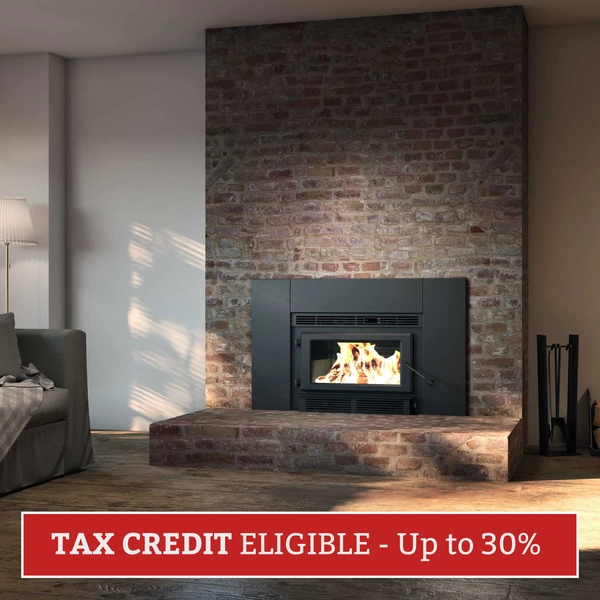

The large glass of the Blue Ridge 150-I surface highlights a panoramic view of the flames to fully enjoy your moments near the fire. This compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning. **Included**: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc ▪ High efficiency 1.1 ft³ firebox ▪ Up to 7 hours burn time ▪ Lightweight steel faceplate with hooks that snap onto the front of the unit ▪ Steel top reinforced with a stainless steel heat shield ▪ High density refractory bricks ▪ Cast iron door and ceramic glass ▪ EPA certified ▪ Proudly made in USA ▪ Non-catalytic combustion system ▪ Qualifies for the 30% US tax credit

Full description
27 7/8"L X 21 7/8"P X 20 1/8"H
250 - 1,200 ft²
17" (16" recommended)
1.5 g/h
Full specifications
INSERT CONFIGURATOR

Recommended for installation

These options allow you to get the most out of your appliance.

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Subtotal:USD $0.00

Accessories

DELIVERY AVAILABLE IN CANADA AND USA*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

The large glass of the Blue Ridge 150-I surface highlights a panoramic view of the flames to fully enjoy your moments near the fire. This compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.

Included: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc

▪ High efficiency 1.1 ft³ firebox
▪ Up to 7 hours burn time
▪ Lightweight steel faceplate with hooks that snap onto the front of the unit
▪ Steel top reinforced with a stainless steel heat shield
▪ High density refractory bricks
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
90 CFM included
Certified according to applicable standards
CAN/USA accredited laboratory
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
5"
Distance-center of the flue outlet to side unit
10 3/8"
Recommended chimney diameter
6"
Type of chimney
ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height
12"
Overall dimension (Width)
27 7/8"
Overall dimension (Height)
20 1/8"
Overall dimension (Depth)
21 7/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
18 1/4"
Door opening size (Height)
7 7/8"
Glass type
Ceramic glass
Glass surface - W x H
17 3/8" x 8 1/8"
Steel thickness-body
3/16"
Steel thickness-top
3/16"
Firebox size (Width)
16 3/8"
Firebox size (Height)
8 3/4"
Firebox size (Depth)
12 3/8"
Maximum log length
17" (16" recommended)
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
Vermiculite
Minimum fireplace opening (Width)
25"
Minimum fireplace opening (Height)
19"
Minimum fireplace opening (Depth)
15 1/2"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited 5 years
Shipping weight
295 lb (134 kg)
Minimum fireplace opening (Height at the back)
17 1/4"
Minimum fireplace opening (Width at the back)
21 1/2"

Appliance performance

Fuel type
Dry cordwood
Heating area(9)
250 - 1,200 ft²
Overall firebox volume
1.1 ft³
EPA loading volume
1.03 ft³
Maximum burn time(9)
7 h
Maximum heat output-dry cordwood(4)
45,000 BTU/h
Minimum overall heat output rate(4)(5)
8,471 BTU/h (2.48 kW)
Maximum overall heat output rate(4)(5)
31,700 BTU/h (9.29 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
75%
Average overall efficiency-dry cordwood (LHV)(5)(7)
80%
Optimum efficiency(1)(2)
82%
Optimum heat transfer efficiency(8)
78%
Average particulate emission rate(3)
1.5 g/h
Average CO(10)
34 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit1"1"Clearance - Combustible top mantle to unit1"1"Clearance - Top of the unit to a 12" combustible mantle shelf34"34"Clearance - Base of the unit to ceiling**72"72"Clearance - Floor protection in front of the unit (from door opening)16"18"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation & user manual
Wood insert manual | Safety notifications & general information
Appliance dimensions
