Heaters
/
Wood Inserts
/ESW0009
Englander
EnglanderSKU: ESW0009

BLUE RIDGE 300-I

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

High efficiency 2.4 ft³ firebox

Full description
50"L X 26 1/2"P X 34"H
500 - 2,100 ft²
20" oriented East-West
2.3 g/h
Full specifications
INSERT CONFIGURATOR

Recommended for installation

These options allow you to get the most out of your appliance.

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Subtotal:USD $0.00

FREE DELIVERY ON ORDERS OVER $100*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

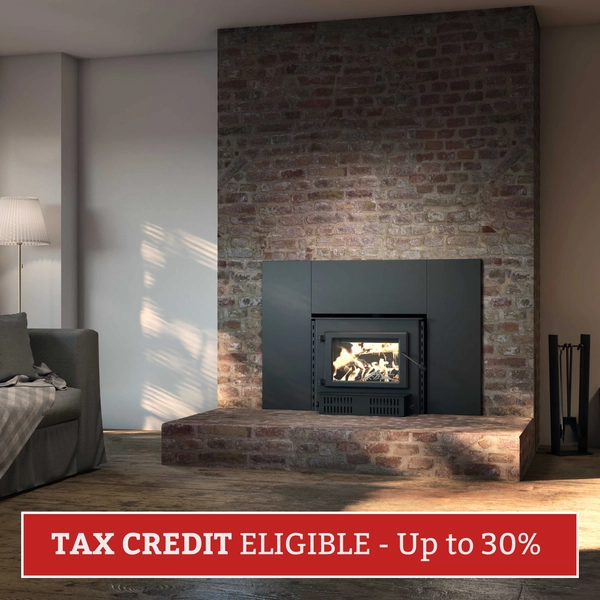

Ideal for heating up to 2,100 ft², the Blue Ridge 300-I is the ultimate versatile wood insert! With only 2.3 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. It is the perfect choice to update your masonry fireplace and make it efficient!

Included: 34" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc

▪ High efficiency 2.4 ft³ firebox
▪ Up to 8 hours burn time
▪ Spring faceplate adjustment system which easily adapts to any type of hearth
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
144
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 3/4"
Distance-center of the flue outlet to side unit
13 1/2"
Recommended chimney diameter
6"
Type of chimney
Liner ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height
12'
Overall dimension (Width)
50"
Overall dimension (Height)
34"
Overall dimension (Depth)
26 1/2"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
14 7/8" x 9 1/4"
Steel thickness-body
3/16"
Steel thickness-top
1/4"
Firebox size (Width)
21"
Firebox size (Height)
12"
Firebox size (Depth)
16 1/2"
Maximum log length
20" oriented East-West
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
28 7/8"
Minimum fireplace opening (Height)
23 3/8"
Minimum fireplace opening (Depth)
15 3/4"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited 5 years
Shipping weight
365 lb (165 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Wood insert manual | Safety notifications & general information
Appliance dimensions
Installation & Operation Requirements
Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.
