Heaters
/
Wood Inserts
/OB02028
Osburn
OsburnSKU: OB02028

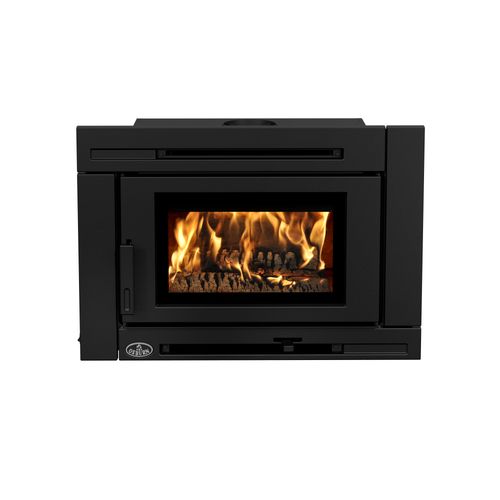

Matrix-I

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 1.54 g/h.

Full description
36 1/8"L X 23 1/8"P X 25 1/8"H
500 - 2,100 ft²
20"
2.3 g/h
Full specifications
INSERT CONFIGURATOR

Recommended for installation

These options allow you to get the most out of your appliance.

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Out of stock

Subtotal:USD $0.00

Accessories

DELIVERY AVAILABLE IN CANADA AND USA*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

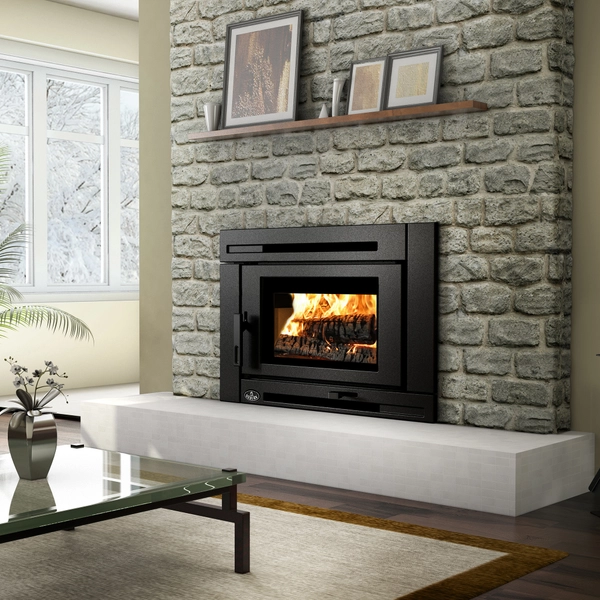

This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 2.3 g/h. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

Note that in order to install the optional projection kit AC01323, one of the optional faceplate backing plate kit AC01322 or AC01332 must be purchased separately to secure the projection kit to it.

APPROVED FOR THE ISLAND OF MONTREAL

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Mobile home approved
No
Premium quality blower included (CFM)
90 CFM included
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes

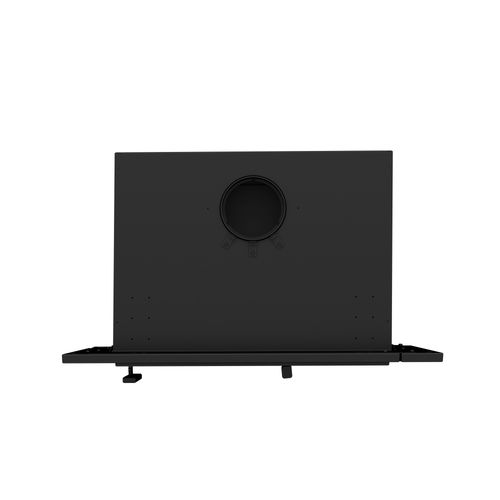

Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
5 5/8"
Distance-center of the flue outlet to side unit
13 1/2"
Recommended chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'
Overall dimension (Width)
36 1/8"
Overall dimension (Height)
25 1/8"
Overall dimension (Depth)
23 1/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
8 3/4"
Glass type
Ceramic glass
Glass surface - W x H
19 5/8" x 11 7/8"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 3/4"
Maximum log length
20"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
Minimum fireplace opening (Width)
28 7/8"
Minimum fireplace opening (Height)
23 3/8"
Minimum fireplace opening (Depth)
19 5/8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
491 lb (223 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22.0 kW)
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84"84"
