Ventis
VentisSKU: VB00014-Bundle
HEI170
Out of stock
Free Curbside Delivery.See Shipping & Delivery PolicyMedium size wood insert suitable for smaller spaces
Full description
INSERT CONFIGURATOR
Recommended for installation
Description

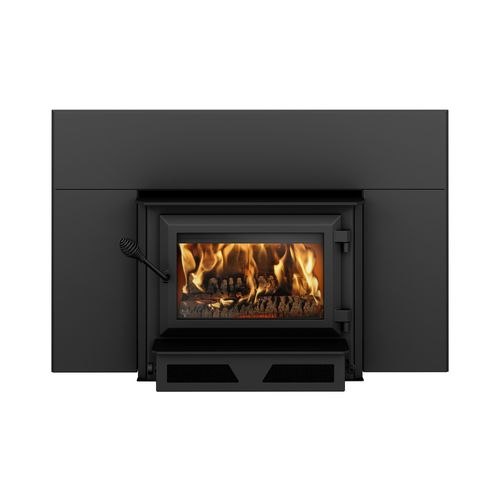

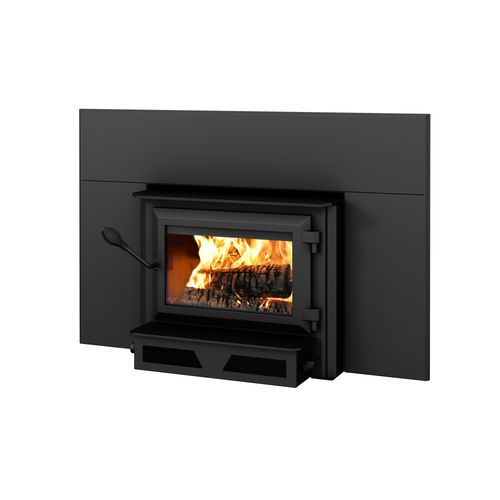

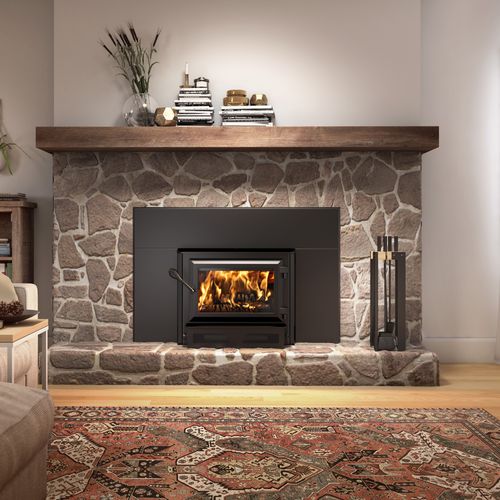

▪Medium size wood insert suitable for smaller spaces
▪EPA certified at only 2.4 g/h
▪Solidity and manufacturing quality
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Cast iron door
▪144 CFM blower
▪Stainless steel heat shield added to the firestop
Required option: regular faceplate (VBA1555) or large faceplate (VBA1556)
Specifications
General features
Premium quality blower included (CFM)
144 CFM included
Certified according to applicable standards
CAN/USA accredited laboratory
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12"
Overall dimension (Width)
27 1/8"
Overall dimension (Height)
21"
Overall dimension (Depth)
22 3/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/4"
Door opening size (Height)
8 3/4"
Glass type
Ceramic glass
Glass surface - W x H
15 5/8" x 9 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
19 5/8"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
13 1/2"
Maximum log length
18"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
27 1/2"
Minimum fireplace opening (Height)
21 1/2"
Minimum fireplace opening (Depth)
12 3/4"
High-efficiency certified appliance
Yes, EPA 2020 certified
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
348 lb (158 kg)
Appliance performance
Fuel type
Dry cordwood
(16" recommended)
Heating area(9)
500 - 1,800 ft²
Overall firebox volume
1.86 ft³
EPA loading volume
1.44 ft³
Maximum burn time(9)
7 h
Maximum heat output-dry cordwood(4)
65,000 BTU/h
Minimum overall heat output rate(4)(5)
9,800 BTU/h (2.87 kW)
Maximum overall heat output rate(4)(5)
52,200 BTU/h (15.3 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
68 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
73 %
Optimum efficiency(1)(2)
76 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
2.4 g/h
Average CO(10)
103 g/h
Clearances
Canada
United States
Manuals and Instructions
Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
