Ventis

VentisSKU: VB00024-Bundle

HEI90

Out of stock

Curbside Delivery.See Shipping & Delivery Policy

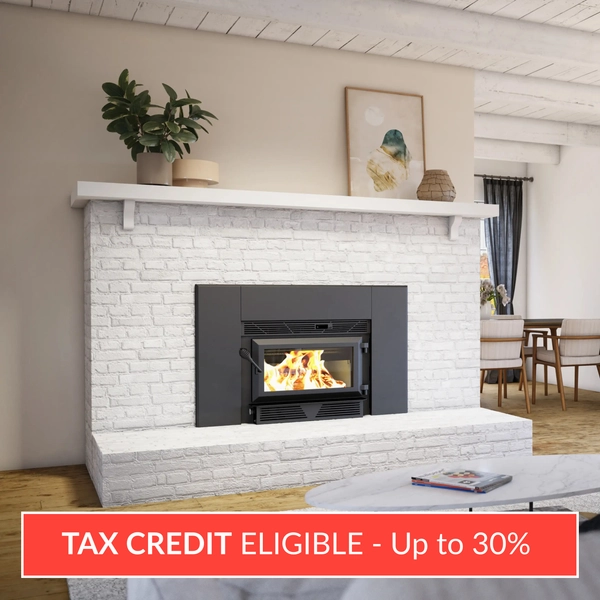

Tapered shape (top and sides) designed to fit the smallest masonry hearths

Full description

Dimension27 7/8"L X 20"P X 20 1/8"H

Heating area250 - 1,200 ft²

Maximum log length17" (16" recommended)

Average particulate emission rate1.5 g/h

Full specifications

INSERT CONFIGURATOR

Customize your productSubtotal: 0

Recommended for installation

Description

▪Small-sized wood insert suitable for tighter spaces
▪Tapered shape (top and sides) that simplifies installation in small masonry hearths
▪EPA certified at only 1.5 g/h
▪Best-in-class performance with an efficiency rate of 75%
▪Solidity and manufacturing quality
▪C-Cast heat shield added to the firestop
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Cast iron door
▪90 CFM blower with right/left powercord

Required option: regular faceplate (VBA1545)

Specifications

General features

Mobile home approved

Premium quality blower included (CFM)

90 CFM included

Certified according to applicable standards

CAN/USA accredited laboratory

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

5 1/8"

Distance-center of the flue outlet to side unit

10 5/8"

Recommended chimney diameter

Type of chimney

ULC-S635, CAN/ULC-S640, UL 1777

Minimum chimney height

12"

Overall dimension (Width)

27 7/8"

Overall dimension (Height)

20 1/8"

Overall dimension (Depth)

20"

Door type

Single, glass with cast iron frame

Door opening size (Width)

18 1/4"

Door opening size (Height)

7 7/8"

Glass type

Ceramic glass

Glass surface - W x H

17 7/8" x 8"

Steel thickness-body

3/16"

Steel thickness-top

3/16"

Firebox size (Width)

16 3/4"

Firebox size (Height)

8 7/8"

Firebox size (Depth)

12 3/8"

Maximum log length

17" (16" recommended)

Log positioning

Loading over width

Firebox lined with refractory bricks

Yes

Baffle type

C-Cast or equivalent

Minimum fireplace opening (Width)

25"

Minimum fireplace opening (Height)

19"

Minimum fireplace opening (Depth)

15 1/2"

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S628

USA Standard (safety)

UL 1482, UL 737

Warranty

Limited 5 years

Shipping weight

287 lb (130 kg)

Minimum fireplace opening (Height at the back)

17 1/4"

Minimum fireplace opening (Width at the back)

21 1/2"

Appliance performance

Fuel type

Dry cordwood

Heating area(9)

250 - 1,200 ft²

Overall firebox volume

1.1 ft³

EPA loading volume

1.03 ft³

Maximum burn time(9)

7 h

Maximum heat output-dry cordwood(4)

45,000 BTU/h

Minimum overall heat output rate(4)(5)

8,471 BTU/h (2.48 kW)

Maximum overall heat output rate(4)(5)

31,700 BTU/h (9.29 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

75%

Average overall efficiency-dry cordwood (LHV)(5)(7)

80%

Optimum efficiency(1)(2)

82%

Optimum heat transfer efficiency(8)

78%

Average particulate emission rate(3)

1.5 g/h

Average CO(10)

34 g/h

Clearances

Canada

United States

Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit1"1"Clearance - Combustible top mantle to unit1"1"Clearance - Top of the unit to a 12" combustible mantle shelf34"34"Clearance - Base of the unit to ceiling**72"72"Clearance - Floor protection in front of the unit (from door opening)16"18"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation and user's manual

Wood insert manual | Safety notifications & general information

Appliance dimensions
