DroletSKU: DB07300

HT-3000

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

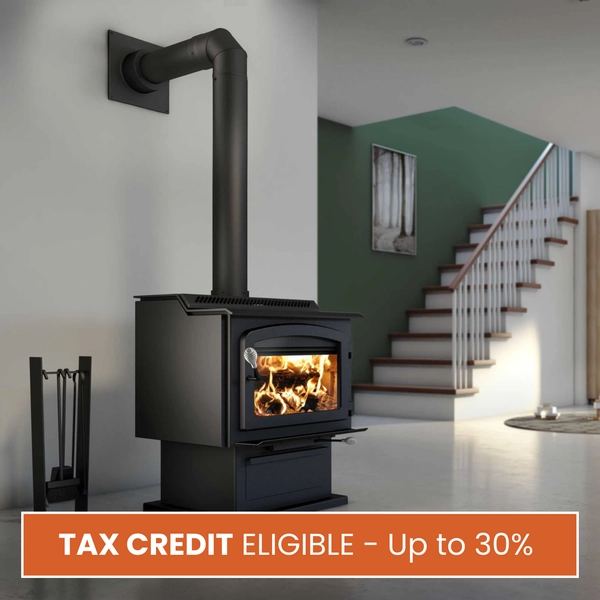

Ideal for heating spaces up to 2,700 ft², the HT-3000 is a wood stove with an impressive output of 110,000 BTU/h.

Full description
28 1/8''L X 31 1/4''P X 36 3/8''H
1,000 - 2,700 ft²
22"
1.6 g/h
Full specifications
alaintitle
Description

Ideal for heating spaces up to 2,700 ft², the HT-3000 is a wood stove with an impressive output of 110,000 BTU/h. EPA certified at 1.6 g/h, this non-catalytic appliance represents an eco-responsible heating source. Completely redesigned, the HT-3000 succeeds the HT2000 while retaining its reliability and distinctive look. Its very large combustion chamber allows logs to be loaded across the width and depth.

Included: pedestal with ash drawer, ceramic glass, ash lip, air damper

▪ Up to 10 hours burn time
▪ Up to 22" logs
▪ 3.5 ft³ firebox
▪ Heavy duty 5/16" steel top reinforced with C-Cast heat shield
▪ Insulated top panel for added durability
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation
▪ This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

MANUFACTURER PROMOTION
Get a FREE blower (AC02050), value of $180, with the purchase of a HT-3000 (DB07300) wood stove. Hurry, this offer is valid on purchases made from December 1st to 31st, 2024. For more details and claim your free item: >https://www.drolet.ca/ca/en/promotions/

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
28 1/8''
Overall dimension (Height)
36 3/8''
Overall dimension (Depth)
31 1/4''
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
9"
Distance-center of the flue outlet to side unit
14 1/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
19"
Door opening size (Height)
10 5/8"
Glass type
Ceramic glass
Glass surface - W x H
18 3/8" x 12 1/8"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
22 7/8"
Firebox size (Height)
12 7/8"
Firebox size (Depth)
20 1/8"
Log positioning
Loading over width and over depth
Maximum log length
22"
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
525 lb (238 kg)
Approved as add-on to an existing furnace
No

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Heating area(9)
1,000 - 2,700 ft²
Overall firebox volume
3.5 ft³
EPA loading volume
2.88 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
110,000 BTU/h (32.2 kW)
Minimum overall heat output rate(4)(5)
17,200 BTU/h (5.0 kW)
Maximum overall heat output rate(4)(5)
57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.6 g/h
Average CO(10)
73 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall13 1/4"6"13"6"Clearance - Side wall14"14"14"14"Clearance - Corner7 1/4"7"7 1/4"7"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.
